01
Channel applications
Channel width, depth and fitting method are assessed together with the profile cross-section.
Share your application
ÇINAR SİLİKON — PRODUCT SERIES 02
Silicone
Profiles.
To match your cross-section.
For your application.
U, T, L, D and custom cross-sections. Silicone profile options suited to your channel dimensions, contact direction and operating conditions.
01
01 / DIMENSIONSWidth · Height · Channel
02
02 / SELECTIONHardness · Colour · Contact direction
03
03 / APPLICATIONStandard and custom geometries
01 / PRODUCT-SPECIFIC SOLUTIONS
From your cross-section
to your application.
A profile cross-section suited to your channel and contact surface. We assess the installation arrangement and operating conditions together.
02

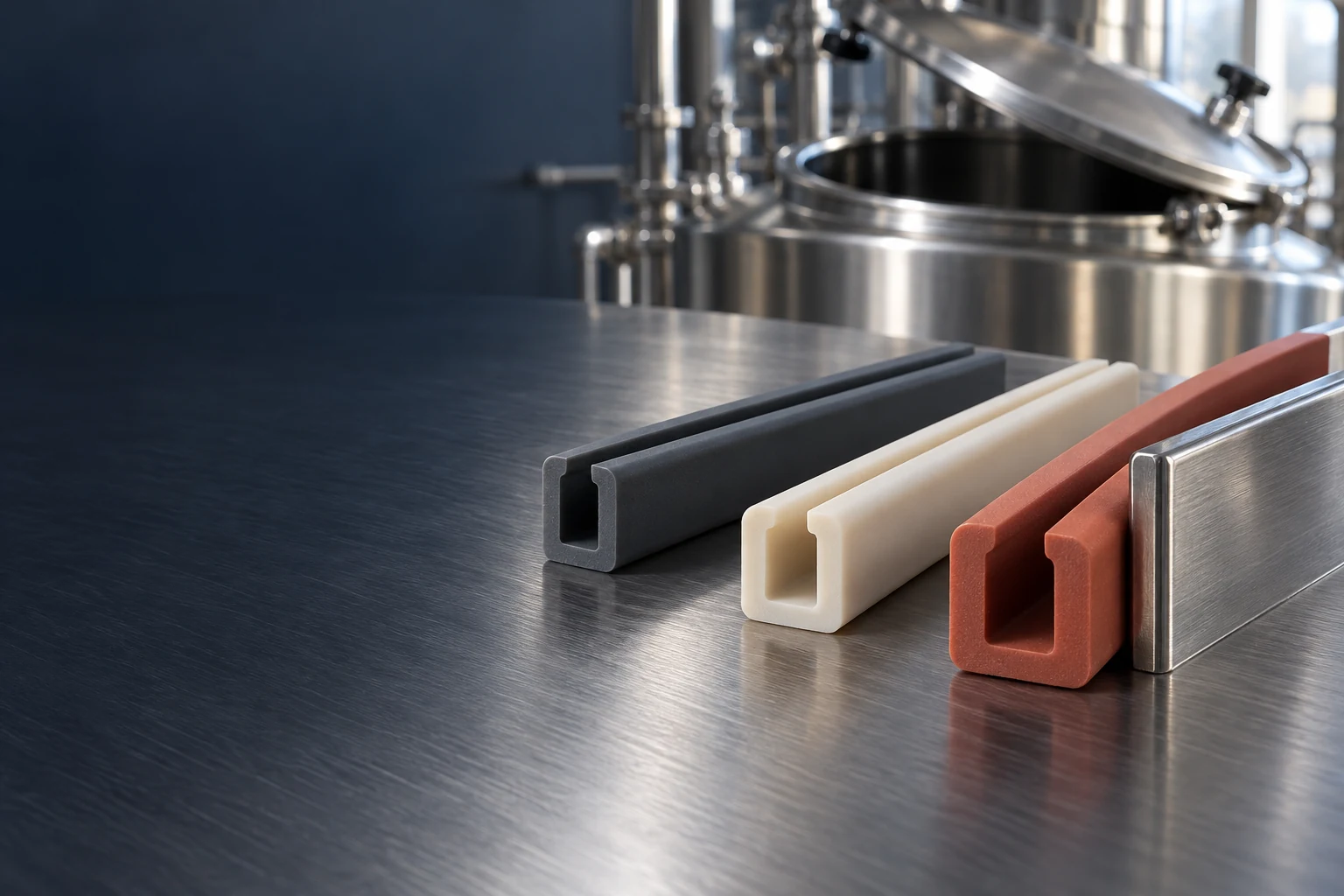

Lid joints
Contact direction and the closed gap help identify the suitable cross-section.
Share your application03
Machine equipment
The need for a standard or custom profile is determined using a technical drawing and operating conditions.
Share your application02 / PROFILE / DIMENSIONS
To fit your channel.
To match your cross-section.
We consider the cross-section, material and operating conditions together. You can start with a technical drawing, sample or dimensioned photo.
CROSS-SECTION STUDIO02 / 06
Illustrative diagram · Not to scale.
Selection and production information
Silicone Profiles| Cross-section options | U, T, L, D, box, lip and application-specific geometries |
|---|---|
| Dimensional information | Cross-section width, height, channel dimensions and contact direction |
| Material selection | Assessment by hardness, colour and operating conditions |
| Minimum order | 100 metres for profile production |
| Production assessment | Using a technical drawing or existing sample |
| Tolerance requirements | Confirmed together with installation and operating requirements. |
Let’s start with your technical drawing.Let’s assess the profile, installation dimensions and operating conditions together.
Explore the catalogue 03 / PROJECT STEPS
From your requirements
to a production plan.
Let's clarify your requirements together using technical drawings, samples or dimensioned photos.
Cross-section and dimensions
Share the profile cross-section's width and height, channel dimensions and contact direction.
Operating conditions
Specify the equipment, operating temperature and contact substances. Include pressure and movement conditions, if applicable.
Quantity and preferences
Provide the total metres or number of pieces, along with your hardness, colour and delivery requirements.
Preparation guide
Prepare your project notes.
Choose your first step based on the information you have.
Prepare to share your drawing.
- Cross-section dimensions and tolerances
- Installation and operating conditions
- Required length or quantity
Your starting point determines the information to prepare for your quotation.
04 / YOUR QUESTIONS
The right profile.
The right start.
Let’s discuss your product and application questions.
ÇINAR SİLİKONGet technical supportCan a silicone profile be made with a custom cross-section?
We assess the cross-sectional geometry, dimensions and production feasibility using your technical drawing or sample.
Which dimensions should I share?
Alongside the profile's cross-section dimensions, sharing the mounting channel and mating surface dimensions helps with the assessment.
What is the minimum order quantity?
The minimum order quantity for silicone profile production is 100 metres.
OTHER PRODUCT GROUPS
Solutions that work together.
THE NEXT STEP
Share your dimensions.
Let’s shape your solution together.
We can start with a technical drawing, sample or application details.
